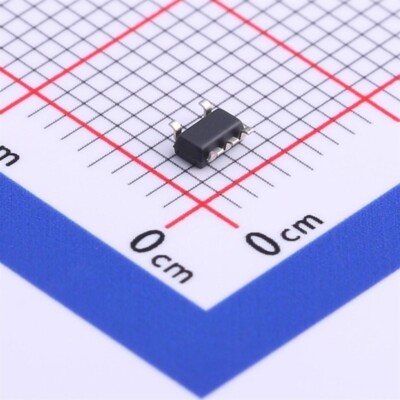

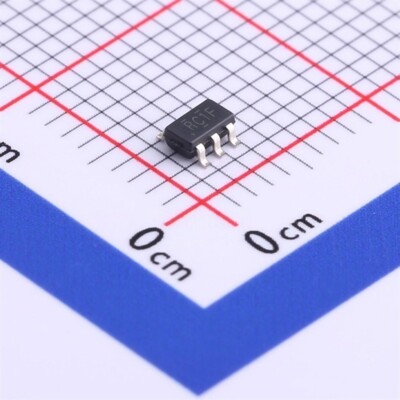

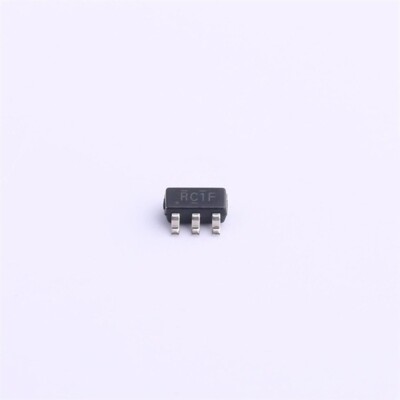

LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC
LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC
LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC
LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC
LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC
LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC

LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC

型号
PCM1808PWR
担保
210 天
隔离电源
原版
最小起订量
1000 件
产品详情

LMV321IDBVR LMV321ILT LMV321M5X/M7X Low Voltage Operational Amplifier Component IC

Attributes parameter value
Product catalogue Operational Amplifier
Op amp type General Purpose
Number of amplifier groups 1
Gain Bandwidth Product (GBP) 1MHz
Slew Rate (SR) 1 V/us
output type Rail-to-Rail
voltage 2.7V ~ 5.5V, ±1.35V ~ 2.75V
Supply current of each channel 130μA
Operating temperature -40°C ~ 125°C



Amplifier Type General
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 1 V/µs
Gain Bandwidth Product 1MHz
Current - Input Bias 15nA
Voltage - Input Offset 1.7mV
Current - Power Supply 130µA
Current - Output/ Channel 160mA
Voltage-Power, Single/Dual (±) 2.7 V ~ 5.5 V, ±1.35 V ~ 2.75 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package/Case SC-74A , SOT-753
Supplier Device Package SOT-23-5
