0.312" 7.92mm PCB Header Connector Through Hole Right Angle 4 Position
产品详情

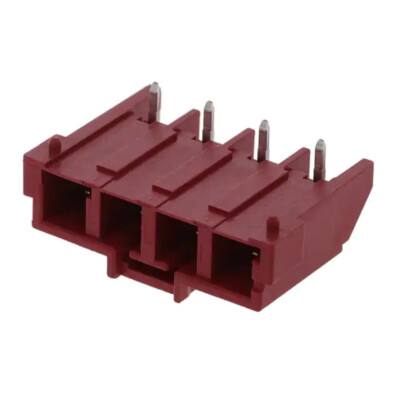

DF22L-4P-7.92DS(53) Header Connector Through Hole, Right Angle 4 Position 0.312" 7.92mm
| TYPE | DESCRIBE |
|---|---|
| category | connector, interconnect device Rectangular Connector - Header, Male Pin |
| manufacturer | Hirose Electric Co Ltd |
| series | EnerBee™ DF22 |
| product status | in stock |
| connector type | joint |
| Contact type | male pin |
| Spacing - Mating | 0.312"(7.92mm) |
| Number of needles | 4 |
| row number | 1 |
| Row Spacing - Mating | - |
| Number of pins loaded | all |
| style | Board to Cable/Wire |
| shield | Shaded - 4 Walls |
| installation type | Through hole, right angle |
| termination | welding |
| Fastening type | Latch holder |
| Contact Length - Mated | 0.354"(9.00mm) |
| Contact Length - Post | 0.146"(3.70mm) |
| Overall contact length | - |
| Insulation height | 0.480"(12.20mm) |
| Contact shape | square |
| Contact Surface Treatment - Mating | gold plated |
| Contact Surface Treatment Thickness - Mating | 8.00µin (0.203µm) |
| Contact Surface Treatment - Post | gold plated |
| Contact material | copper alloy |
| Insulation Materials | Polyamide (PA), Nylon |
| characteristic | plate guide |
| Operating temperature | -55°C ~ 85°C |
| Intrusion Prevention | - |
| Material flammability rating | UL94 V-0 |
| Insulation color | red |
| Rated Current (Ampere) | Varies by wire gauge |
| Rated voltage | 1000VAC/DC |
| Joint stack height | - |
| Contact Surface Treatment Thickness - Post | 8.00µin (0.203µm) |
