3 Position Circular PCB Header Connector Male Pin Solder Cup W8382-3PG-P-3DC
产品详情

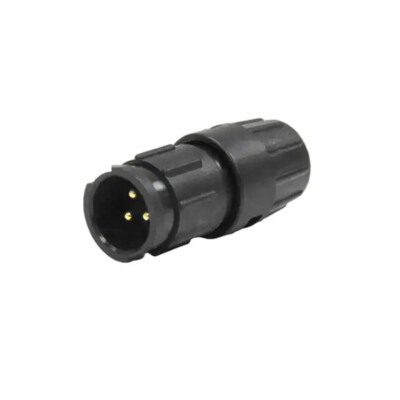

W8382-3PG-P-3DC 3-Position Circular Connector Header Male Pin Solder Cup
| TYPE | DESCRIBE |
|---|---|
| category | connector, interconnect device circular connector |
| manufacturer | Conxall/Switchcraft |
| series | Mini-Con-X® Insta-Click™ |
| product status | in stock |
| connector type | plug, male pin |
| Number of needles | 3 |
| Housing Dimensions - Plug-in | - |
| Case size, MIL | - |
| installation type | free hanging |
| Installation features | - |
| termination | solder cup |
| Fastening type | bolt lock |
| direction | marked |
| Main material | plastic |
| Shell material | Polybutylene terephthalate (PBT) |
| Shell surface treatment | - |
| Contact Surface Treatment - Mating | gold plated |
| color | black |
| Intrusion Prevention | IP66/IP67/IP68 - Dustproof, Waterproof, Waterproof |
| Material flammability rating | - |
| characteristic | Bottom shell, connection nut, UV protection |
| shield | Unshielded |
| Rated Current (Ampere) | 13A |
| Rated voltage | 300VAC/DC |
| cable opening | - |
| Operating temperature | -40°C ~ 85°C |
| Bottom Case Material, Plating | Polybutylene terephthalate (PBT) |
| Contact material | copper alloy |
| Contact Surface Treatment Thickness - Mating | - |
| Embedded material | thermoplastic |
| application | illumination |
