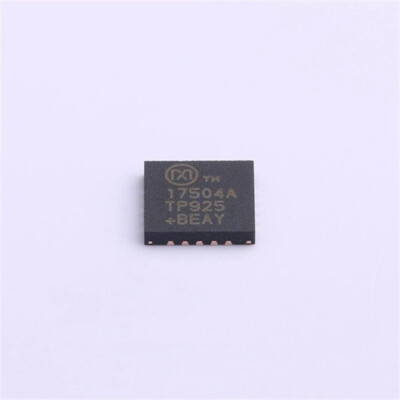

MAX17504ATP+T Switching Voltage Regulators Original IC Chip
MAX17504ATP+T Switching Voltage Regulators Original IC Chip

MAX17504ATP+T Switching Voltage Regulators Original IC Chip

型号
MAX17504ATP+T
担保
210 天
隔离电源
原版
最小起订量
1000 件
特征
产品详情
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8542330001
Automotive No
PPAP No
Type Synchronous Step Down
Process Technology BiCMOS
Output Type Adjustable
Switching Frequency (kHz) 200 to 2200
Switching Regulator Yes
Number of Outputs 1
Output Voltage (V) 0.9 to 54
Maximum Output Current (A) 3.5
Minimum Input Voltage (V) 4.5
Maximum Input Voltage (V) 60
Operating Supply Voltage (V) 4.5 to 60
Typical Switch Current (A) 5.1
Typical Quiescent Current (uA) 9500
Efficiency (%) 90(Min)
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Supplier Temperature Grade Automotive
