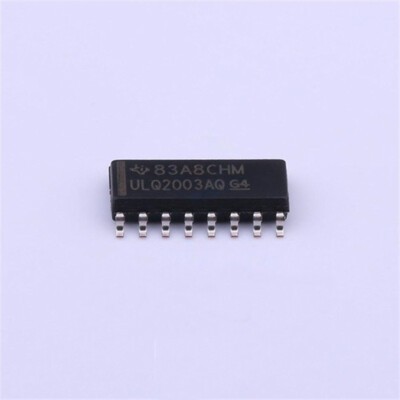

ULQ2003AQDRQ1 ULQ2003AQ Switching Power Supply Chip 16 Pin
产品详情
ULQ2003AQDRQ1 ULQ2003AQ switching power supply chip package SOP16 new original
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| SVHC | Yes |
| Automotive | Yes |
| PPAP | Yes |
| Type | NPN |
| Configuration | Array 7 |
| Number of Elements per Chip | 7 |
| Maximum Collector-Emitter Voltage (V) | 50 |
| Maximum Continuous DC Collector Current (A) | 0.5 |
| Maximum Collector-Emitter Saturation Voltage (V) | 1.8@350mA|1.5@200mA|1.3@100mA |
| Maximum Power Dissipation (mW) | 950 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Standard Package Name | SOP |
| Supplier Package | SOIC |
| Mounting | Surface Mount |
