4 Position Panel Mount Circular Connector Socket Male Pin Solder SS-12000-003
产品详情

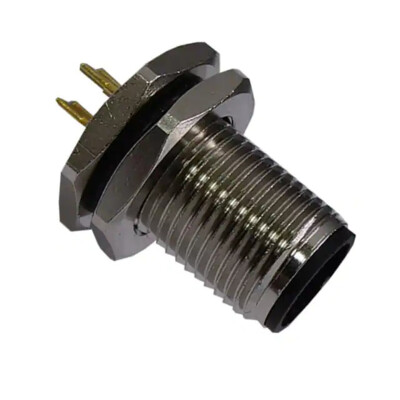

SS-12000-003 4-Position Circular Connector Socket Male Pin Solder
| TYPE | DESCRIBE |
|---|---|
| category | connector, interconnect device circular connector |
| series | - |
| product status | in stock |
| connector type | socket, male pins |
| Number of needles | 4 |
| Housing Dimensions - Plug-in | M12-4 |
| Case size, MIL | - |
| installation type | Panel Mount, Through Hole |
| Installation features | Bulkhead - Front Nut |
| termination | welding |
| Fastening type | threaded |
| direction | A |
| Main material | Metal |
| Shell material | copper alloy |
| Shell surface treatment | nickel |
| Contact Surface Treatment - Mating | gold plated |
| color | silver |
| Intrusion Prevention | IP67 - Dustproof, Waterproof |
| Material flammability rating | UL94 V-0 |
| characteristic | - |
| shield | shield |
| Rated Current (Ampere) | 4A |
| Rated voltage | - |
| cable opening | - |
| Operating temperature | -20°C ~ 85°C |
| Bottom Case Material, Plating | - |
| Contact material | copper alloy |
| Contact Surface Treatment Thickness - Mating | 1.00µin (0.025µm) |
| Embedded material | thermoplastic |
| application | Communication Systems, Industrial |
| Basic product number | SS-12000 |
