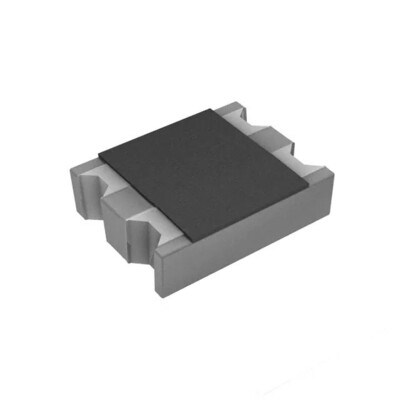

742C043472JP SMT Resistor Networks 4.7k Ohm 62.5mW 2 RES 4.7K
产品详情
742C043472JP SMT Resistor Networks 4.7k Ohm 62.5mW 2 RES 4.7K
| the installation type | surface mount type |
| circuit type | isolation |
| height - installation (max) | 0.028"(0.70mm) |
| number of resistors | 2 |
| resistance (ohm) | 4.7k |
| encapsulation/housing | 0606, depression |
| power per component | 62.5mW |
| operating temperature | -55°C ~ 125°C |
| size/size | 0.063" l x 0.063" w (1.60mm x 1.60mm) |
| temperature coefficient | ±200ppm/°C |
| supplier device package | 0603 |
| resistor matching ratio | - |
| resistor matching rate drift | - |
| tolerance | ±5% |
| number of pins | 4 |
