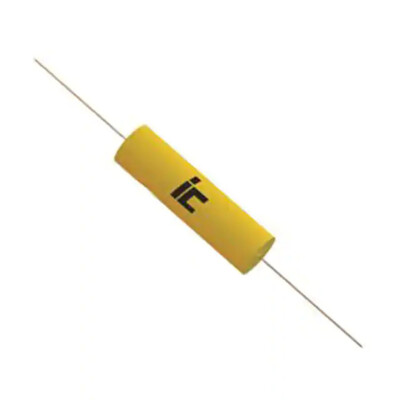

Metallized Polyester Film Capacitor 103MWR630K 10000 pF 220V 630V
产品详情
103MWR630K Capacitor 10000 pF Film 220V 630V Polyester Metallized Axial
| TYPE | DESCRIBE |
|---|---|
| category | Film capacitors |
| manufacturer | Cornell Dubilier / Illinois Capacitor |
| series | MWR |
| product status | in stock |
| capacitance | 10000 pF |
| Tolerance | ±10% |
| Rated Voltage - AC | 220V |
| Rated Voltage - DC | 630V |
| Dielectric material | polyester, metallized |
| ESR (Equivalent Series Resistance) | 141.471 Ohms |
| Operating temperature | -40°C ~ 105°C |
| installation type | through hole |
| Package/Enclosure | Axial |
| size/dimension | 0.236" Dia x 0.551" L (6.00mm x 14.00mm) |
| Height - Mounted (Maximum) | - |
| termination | PC pins |
| lead spacing | - |
| application | Universal |
| grade | - |
| characteristic | Low ESR |
