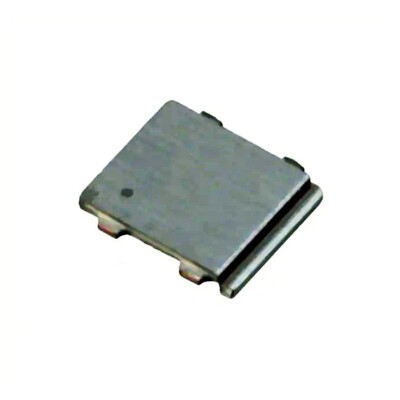

CSD87381PT CSD87381P 87381P PTAB5 Synchronous Step Down Power Module Chip
产品详情
| Mounting Style: | SMD/SMT |
| Package / Case: | PTAB-5 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 2 Channel |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Id - Continuous Drain Current: | 8 A |
| Rds On - Drain-Source Resistance: | 16.3 mOhms, 7.6 mOhms |
| Vgs - Gate-Source Voltage: | - 8 V, + 8 V |
| Vgs th - Gate-Source Threshold Voltage: | 1.1 V, 1 V |
| Qg - Gate Charge: | 3.9 nC, 8.9 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 150 C |
| Pd - Power Dissipation: | 4 W |
| Channel Mode: | Enhancement |
