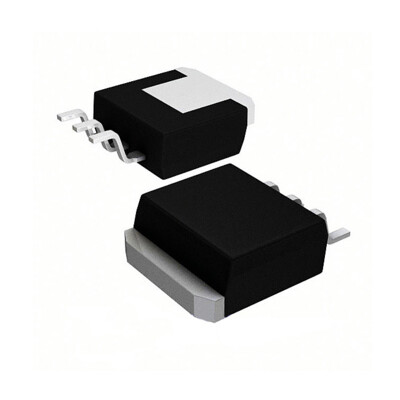

Original TL720M05QKTTRQ1 Controllers Linear LDO Regulators TO-263
产品详情
Original TL720M05QKTTRQ1 Controllers Linear LDO Regulators TO-263
product properties
| Product status | Sale |
| Output configuration | correct |
| The output type | fixed |
| The number of regulators | 1 |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage drop (maximum) | 0.5V @ 300mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Power Supply (Max) | 22 mA |
| PSRR | 60dB(100Hz) |
| Control characteristics | - |
| Protection features | Short circuit, reverse polarity |
| Operating temperature | -40°C ~ 125°C(TA) |
| The installation type | Surface mount type |
