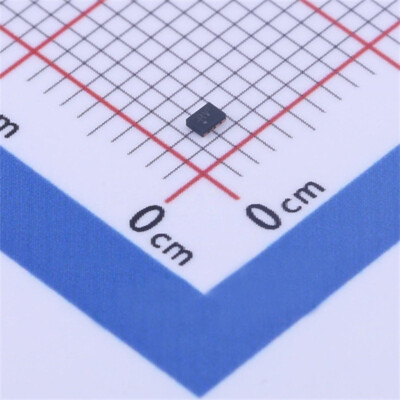

SN74AHC1G04DBVR SOT-23-5 Single Channel Original SMD Inverter Logic Gate Chips
产品详情
SN74AHC1G04DBVR SOT-23-5 Single-Channel Original SMD Inverter Gate Logic Chip
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Voltage - Power Supply | 2 V ~ 5.5 V |
| Current - Quiescent (Max) | 1 μA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5 V ~ 1.65 V |
| Logic Level - High | 1.5 V ~ 3.85 V |
| Different V, Maximum Propagation Delay at Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package/Enclosure | SC-74A, SOT-753 |
