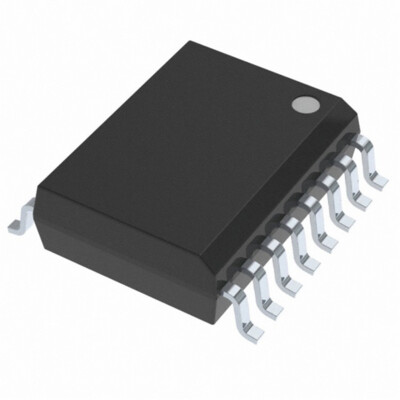

ADUM1401ARWZ-RL General Purpose Digital Isolator 2500Vrms 4ch 1Mbps CMTI 16-SOIC
产品详情
ADUM1401ARWZ-RL General Purpose Digital Isolator 2500Vrms 4ch 1Mbps CMTI 16-SOIC
| TYPE | DESCRIBE |
|---|---|
| category | Isolator digital isolator |
| manufacturer | Analog Devices Inc. |
| series | iCoupler® |
| product status | in stock |
| technology | Magnetic coupling |
| type | Universal |
| Isolated power | none |
| number of channels | 4 |
| Input - Side 1/Side 2 | 3/1 |
| channel type | unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| data rate | 1Mbps |
| Propagation delay tpLH / tpHL (max) | 100ns,100ns |
| Pulse width distortion (max) | 40ns |
| Rise/Fall Time (Typical) | 2.5ns,2.5ns |
| Voltage - Powered | 2.7V ~ 5.5V |
| Operating temperature | -40°C ~ 105°C |
| installation type | Surface Mount Type |
| Package/Enclosure | 16-SOIC (0.295", 7.50mm wide) |
| Supplier Device Packaging | 16-SOIC |
| Basic product number | ADUM1401 |
