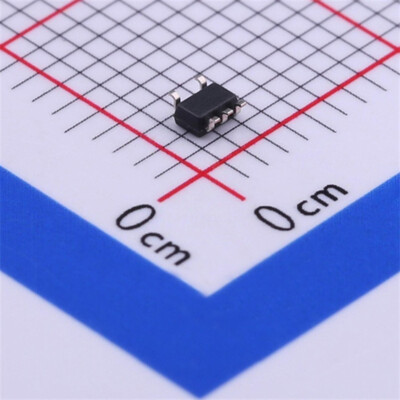

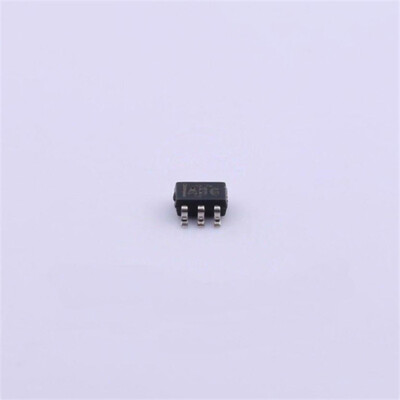

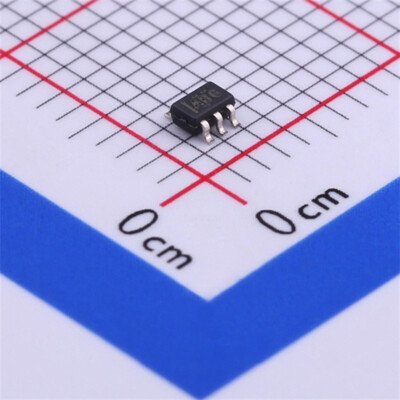

SN74AHC1G02DCKR AND Gate 1-Element 2-IN CMOS Automotive 5-Pin SOT-23
产品详情
SN74AHC1G08QDBVRQ1 AND Gate 1-Element 2-IN CMOS Automotive 5-Pin SOT-23
| Logic type | or number of non-gated |
| circuits | 1 |
| number of inputs | 2 |
| voltage - Supply | 2 V to 5.5 V |
| current - Quiescent (max) | 1 μA |
| current - Output high, low | 8 mA, 8 mA |
| logic level - Low | 0.5 V to 1.65 V |
| logic level - High | 1.5 V ~ 3.85 V |
| Different V, Maximum Propagation Delay at MAXIMUM CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mount Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package/Housing | 5-TSSOP, SC-70-5, SOT-353 |
