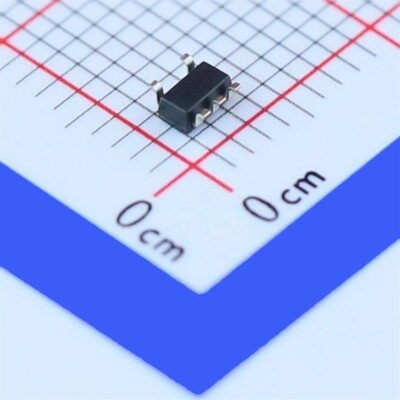

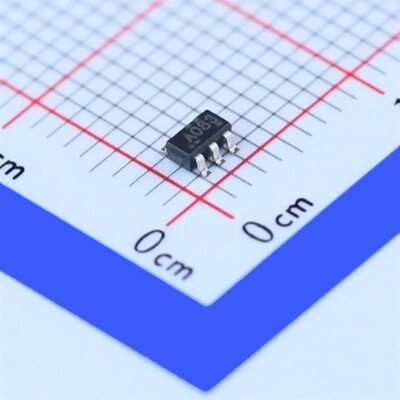

SN74AHC1G08DBVR SOT-23-5 Single-Way 2-Input Positive And Gate Logic Chip Original Authentic
产品详情
SN74AHC1G08DBVR SOT-23-5 Single-Way 2-Input Positive And Gate Logic Chip Original Authentic
| Attributes | parameter value |
|---|---|
| Product catalogue | logic gate |
| The family of logic circuits | 74AHC |
| logical type | AND gate |
| Number of circuits/components | 1 |
| Number of inputs/bits per element | 2 |
| voltage | 2V ~ 5.5V |
| Quiescent current (max) | 1μA |
| Current - output high, low | 8mA, 8mA |
| Operating temperature | -55℃~125℃ |
| Extra features | - |
| Maximum propagation delay at maximum CL for different V | 7.9ns @ 5V, 50pF |
| Logic Type | AND Number of Circuits 1 |
| Number of Inputs | 2 |
| Voltage - Power Supply | 2 V ~ 5.5 V |
| Current - Quiescent (Max) | 1 μA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5 V ~ 1.65 V |
| Logic Level - High | 1.5 V ~ 3.85 V |
| at different V, Maximum Propagation Delay at Max CL | 7.9ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package/Enclosure | SC-74A, SOT-753 |
