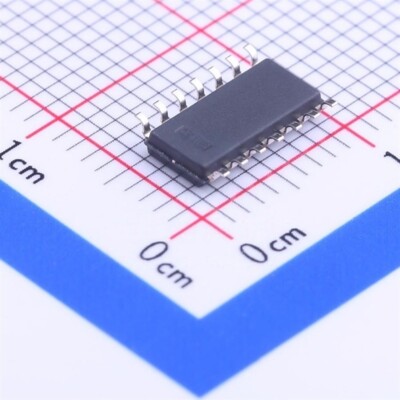

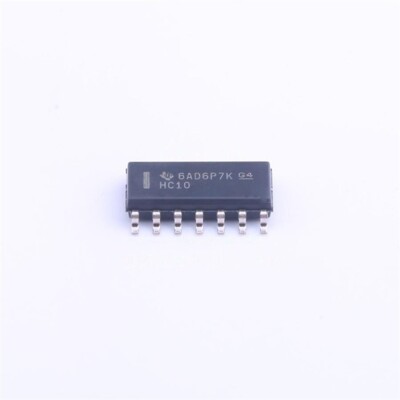

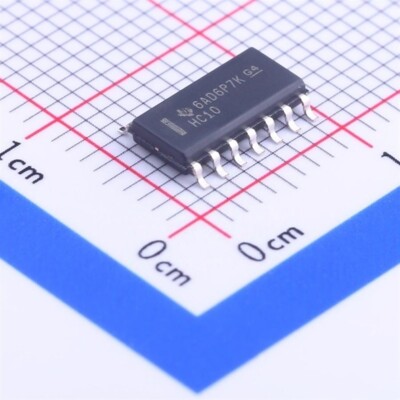

SN74HC10DR SOIC-14 three-way 3-input positive and non-gate SMD logic IC chip New Original
产品详情
SN74HC10DR SOIC-14 Three-Way 3-Input Positive And Non-Gate SMD Logic IC Chip New Original
| Attributes | parameter value |
|---|---|
| Product catalogue | logic gate |
| The family of logic circuits | 74HC |
| logical type | NAND gate |
| Number of circuits/components | 3 |
| Number of inputs/bits per element | 3 |
| voltage | 2V ~ 6V |
| Quiescent current (max) | 2μA |
| Current - output high, low | 5.2mA, 5.2mA |
| Operating temperature | -40℃~85℃ |
| Extra features | - |
| Maximum propagation delay at maximum CL for different V | 16ns @ 6V, 50pF |
| Logic Type | NAND |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Voltage - Power Supply | 2 V ~ 6 V |
| Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5 V ~ 1.8 V |
| Logic Level - High | 1.5 V ~ 4.2 V |
| Different V, Maximum Propagation Delay at Max CL | 16ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supply Commercial Device Package | 14-SOIC |
| Package/Case | 14-SOIC (0.154", 3.90mm wide) |
