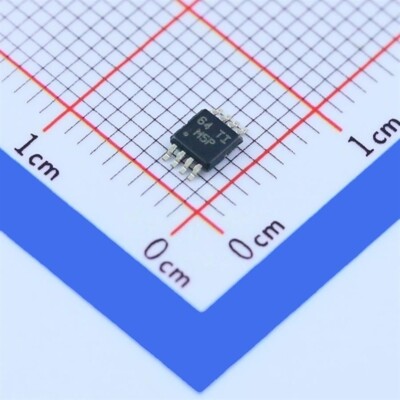

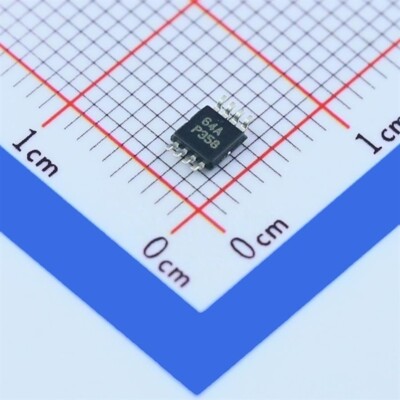

LM358DGKR M5P New Original LM358 SMD MSOP-8 Operational Amplifier Dense Foot
产品详情
M5P New Original LM358 SMD MSOP-8 Operational Amplifier Dense Foot
| Attributes | parameter value |
|---|---|
| Product catalogue | Operational Amplifier |
| Op amp type | General Purpose |
| Number of amplifier groups | 2 |
| Gain Bandwidth Product (GBP) | 700kHz |
| Slew Rate (SR) | 0.3V/us |
| output type | - |
| voltage | 3V ~ 32V, ±1.5V ~ 16V |
| Supply current of each channel | 1mA |
| Operating temperature | 0°C ~ 70°C |
| Amplifier Type | General |
| Number of Circuits | 2 |
| Slew Rate | 0.3 V/µs |
| Gain Bandwidth Product | 700kHz |
| Current - Input Offset | 20nA |
| Voltage - Input Offset | 3mV |
| Current - Supply | 1mA |
| Current - Output/Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 32 V, ±1.5 V ~ 16 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package/Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm wide) |
| Supplier Device Package | 8-VSSOP |
