SGS SMD Crystal Oscillator 32.768 KHz ±20ppm 9pF No Leads
SGS SMD Crystal Oscillator 32.768 KHz ±20ppm 9pF No Leads

SGS SMD Crystal Oscillator 32.768 KHz ±20ppm 9pF No Leads

型号
CC5V-T1A-32.768KHZ-9PF-20PPM-TA-QC
担保
210 天
隔离电源
原版
最小起订量
1000 件
产品详情

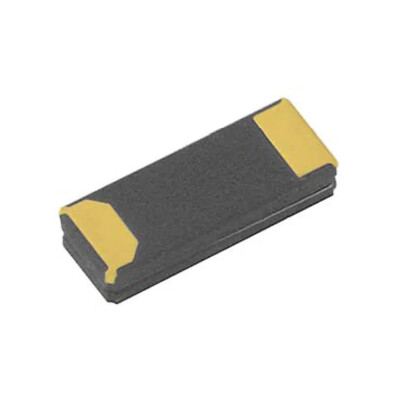

CC5V-T1A-32.768KHZ-9PF-20PPM-TA-QC 32.768 KHz ±20ppm Crystal 9pF 2-SMD No Leads

TYPE DESCRIBE
category Crystals, Oscillators, Resonators crystal
product status in stock
type kHz crystal (tuning fork)
frequency 32.768kHz
Frequency Stability -
Frequency tolerance ±20ppm
load capacitance 9pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating mode fundamental harmonic
Operating temperature -40°C ~ 85°C
grade -
installation type Surface Mount Type
Package/Enclosure 2-SMD, no leads
size/dimension 0.161"L x 0.059"W (4.10mm x 1.50mm)
Height - Mounted (Maximum) 0.035" (0.90mm)
