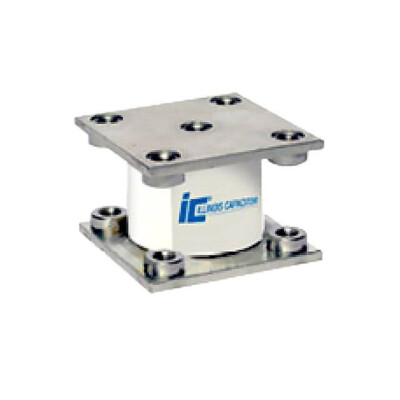

0.33 µF Polypropylene Film Capacitor 700V 334LC2700K5HM6 Non Standard
产品详情
334LC2700K5HM6 0.33 µF Film Capacitor 700V - Polypropylene (PP) Non-Standard
| TYPE | DESCRIBE |
|---|---|
| category | Film capacitors |
| manufacturer | Cornell Dubilier / Illinois Capacitor |
| series | LC2 |
| product status | in stock |
| capacitance | 0.33µF |
| Tolerance | ±10% |
| Rated Voltage - AC | 700V |
| Rated Voltage - DC | - |
| Dielectric material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1 mOhms |
| Operating temperature | -40°C ~ 85°C |
| installation type | base mount |
| Package/Enclosure | non-standard |
| size/dimension | 1.969"L x 1.969"W (50.00mm x 50.00mm) |
| Height - Mounted (Maximum) | 1.339" (34.00mm) |
| termination | thread, female |
| lead spacing | - |
| application | Conduction Cooled, High Pulse, DV/DT |
| grade | - |
| characteristic | - |
