Memory EEPROM IC 2KBIT SGL WIRE 8SOIC RAM IC Chip 11AA02E48T-I/SN 11AA02E48T-I/TT
产品详情
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | Yes |
| PPAP | Yes |
| Chip Density (bit) | 2K |
| Organization | 256x8 |
| Programmability | Yes |
| Data Retention (Year) | 200(Min) |
| Maximum Operating Frequency (MHz) | 0.1 |
| Interface Type | UNI/O Serial |
| Minimum Operating Supply Voltage (V) | 1.8 |
| Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Operating Current (mA) | 5 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Hardware Data Protection | Yes |
| Packaging | Tape and Reel |
| Pin Count | 3 |

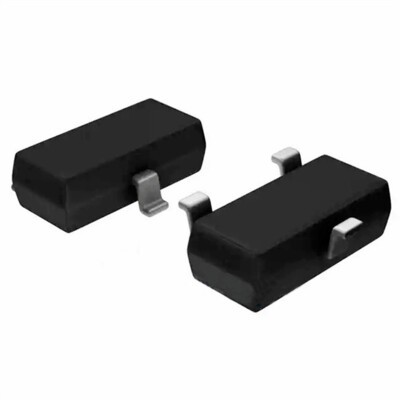

| Standard Package Name | SOT-23 |
