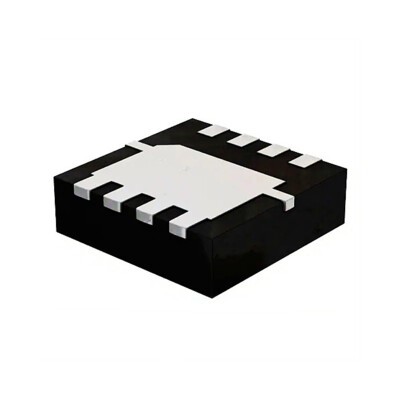

Integrated Circuits Transistors FET MOSFETs single CSD25404Q3 8VSON
产品详情
| Product status | Sale |
| FET type | P channel |
| technology | MOSFETs (Metal Oxides) |
| Drain source voltage (Vdss) | 20 V |
| Current at 25°C - Continuous Drain (Id) | 104A(Tc) |
| Drive voltage (max Rds On, min Rds On) | 1.8V,4.5V |
| On resistance (max) for different Ids and Vgs | 6.5 mOhm @ 10A, 4.5V |
| Vgs(th) for different IDs (maximum) | 1.15V @ 250µA |
| Gate charge (Qg) at different Vgs (max) | 14.1 nC @ 4.5 V |
| Vgs (maximum) | ±12V |
| Input capacitance (Ciss) for different Vds (max) | 2120 pF @ 10 V |
