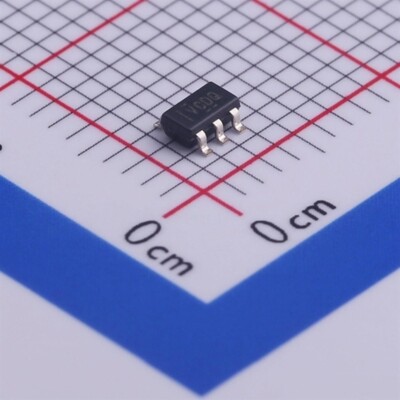

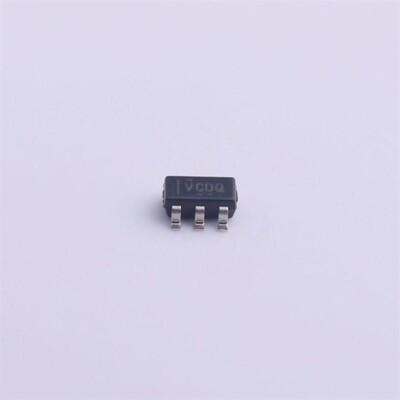

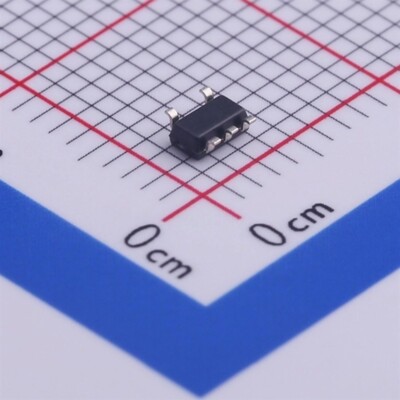

TLV73312PDBVR TLV73312 SMD SOT23-5 300mA Linear Regulator LDO Linear Integrated Circuits
产品详情
| Attributes | parameter value |
|---|---|
| Product catalogue | Linear Regulators (LDOs) |
| output type | fixed |
| output polarity | just |
| Number of output channels | 1 |
| Maximum input voltage | 5.5V |
| The output voltage | 1.2V~1.2V |
| differential pressure | 450mV@(300mA) |
| Output current | 300mA |
| Power Supply Ripple Rejection Ratio (PSRR) | 68dB@(100Hz), 28dB@(100kHz) |
