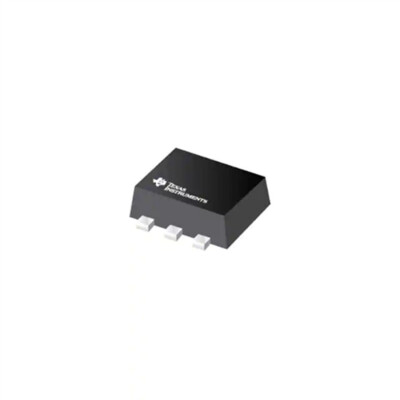

TPS562202DRLR Switching Regulator 4.3-V To 17-V Input, 2-A IC Integrated Circuit
产品详情
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542330001 |
| Automotive | No |
| PPAP | No |
| Type | Synchronous Step Down |
| Output Type | Adjustable |
| Switching Frequency (kHz) | 580(Typ) |
| Switching Regulator | Yes |
| Number of Outputs | 1 |
| Output Voltage (V) | 0.804 to 7 |
| Maximum Output Current (A) | 2 |
| Minimum Input Voltage (V) | 4.3 |
| Maximum Input Voltage (V) | 17 |
| Operating Supply Voltage (V) | 4.3 to 17 |
| Typical Quiescent Current (uA) | 380 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Supplier Package | SOT-563 |
| Pin Count | 6 |
| Mounting | Surface Mount |
| Package Height | 0.55(Max) |
| Package Length | 1.7(Max) |
| Package Width | 1.3(Max) |
| PCB changed | 6 |
