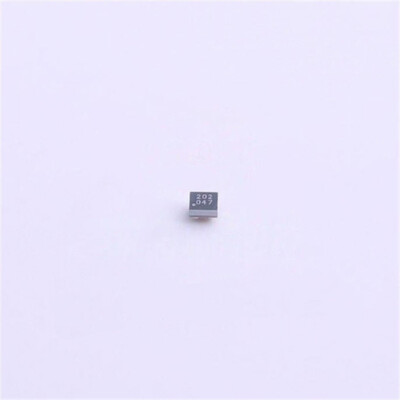

CSD23202W10 Trans MOSFET P-CH 12V 2.2A 4 Pin IC DSBGA
产品详情
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Configuration | Single Dual Drain |
| Process Technology | NexFET |
| Channel Mode | Enhancement |
| Channel Type | P |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 12 |
| Maximum Gate Source Voltage (V) | 6 |
| Maximum Gate Threshold Voltage (V) | 0.9 |
| Maximum Continuous Drain Current (A) | 2.2 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (mOhm) | 53@4.5V |
| Typical Gate Charge @ Vgs (nC) | 2.9@4.5V |
| Typical Input Capacitance @ Vds (pF) | 394@6V |
| Maximum Power Dissipation (mW) | 1000 |
| Typical Fall Time (ns) | 21 |
| Typical Rise Time (ns) | 4 |
| Typical Turn-Off Delay Time (ns) | 58 |
| Typical Turn-On Delay Time (ns) | 9 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Supplier Package | DSBGA |
| Pin Count | 4 |
| Standard Package Name | BGA |
| Mounting | Surface Mount |
| Package Height | 0.28(Max) |
| Package Length | 1 |
| Package Width | 1 |
| PCB changed | 4 |
| Lead Shape | Ball |
